Pneumatic Line Thrower

Pneumatic Line Thrower

A pneumatic line thrower is a device used for launching a lightweight line over a long distance at sea. The Line thrower establishes a connection between two points, typically between a ship and the shore, between two vessels, or for rescue operations. The device operates by utilizing compressed air to propel the line. This allows it to cover a longer distance accurately and with greater force than can be achieved by hand.

SKU: N/A Category:

Description

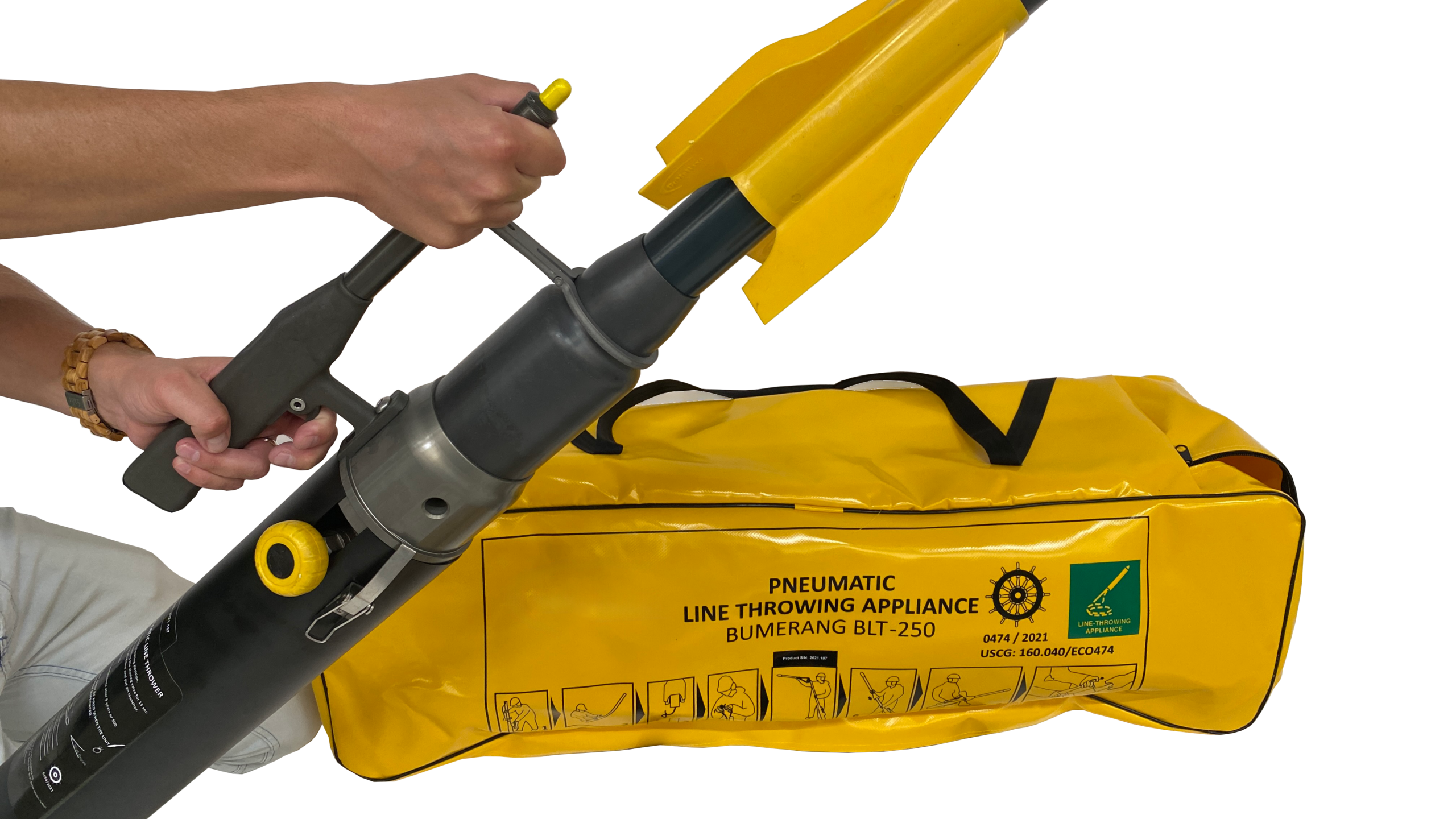

Our BLT 250 Line Thrower is a Pneumatic Line Thrower that throws (shoots) projectiles by a compressed air system. It has 4 interchangeable launchers and the projectiles are easy to refill. Meets the demands of SOLAS/lMO regulation 74/83. The projectiles of the line thrower reach approximately 250 meters. They are only affected by a crosswind and can reach the maximum speed at the end of the launcher. In advance, this device can also be used into flammable areas.

All items are reusable and their shelf life is unlimited. The only cost for four throws is refilling the cylinder with your air compressor.



TECHNICAL DATA

Weight throwing unit 8,3 kg
Weight projectile 2,1 kg
Materials Aluminium, Stainless steel, MS58 Brass, PVC, and ABS
Shooting chamber pressure 65 bar
Maximum Recoil 5400N
Average Nozzle Velocity 50,6m/s
Number of shots 4
Aluminum air cylinder pressure 200 bar
Aluminum air cylinder volume 2 l



BENEFITS & FEATURES

• No explosion, useable from and into flammable areas
• Complete set (4 projectiles, throwing unit, user manual, sturdy orange carrying bag)
• Optional wooden storage box available



APPROVALS

RINA
• USCG
• Wheelmark



STANDARDS

• SOLAS/IMO regulation 74/83

If you would like to download the certificates and datasheets related to the Pneumatic Line Thrower, please click here to visit our Downloads page.

Additional information

Version

Pneumatic Line Thrower, Wooden box for Pneumatic Line thrower
